All Danfoss EBI Accessories In India

EBI Service Kit for easy replacement of a conventional ignition transformer to an electronic ignition.
4x fixing screws
2 spark plug wire with 4 mm plug length 500 mm
2 x 4 mm dia plug electrodes
2 x 6.35 mm electrode connector
4 screws, adhesive pad and instructions



All type of Danfoss EBI Transformer are available in Mumbai, India (On Demand)


  Danfoss EBI4 HP Transformer Series:



Type of EBI4 HP Transformers

Transformer EBI4 HPM
Transformer EBI4 HP1P

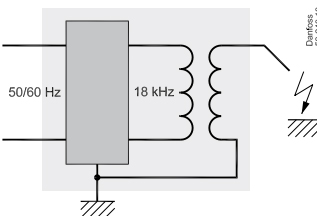

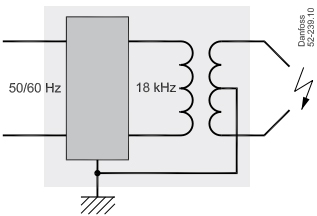

The EBI4 HP unit series is specially designed for applications where High Power ignition is required. EBI4 HP1P is a 2-pole version with secondary mid-point grounded. EBI HP1P is a 1-pole
version for ignition between one electrode  and frame. The units are characterized by a very power -ful spark, capable of igniting large capacity oil and gas burners. They may also be used in applications where high ignition performance and reliability are required.



EBI4HP Transformer Applications and Features :

1- or 2-pole ignition
Low power consumption due to high efficiency (new technology)
Complies with the RoHs and WEEE directives
EMC according to EN 55014-1 and
EN 55014-2
Earth connection through the primary cable
Same dimensions and flexible mounting as the well-known EBI series





Transformer EBI4 HPM

Oil and gas burners requiring high power ignition
33% ED at 60C
Top or front connection for secondary cables
230 V



Transformer EBI4 HP1P

Oil and gas burners requiring high power ignition
33% ED at 60C
Top or front connection for secondary cables
230 V



Danfoss EBI transformer : EBI4HPM oil burner transformer, EBI4HPM Gas burner transformer, EBI4HP1P oil burner transformer, EBI4HP1P Gas burner transformer, EBI4CM oil burner transformer, EBI4CM Gas burner transformer, EBI4C1P gas burner transformer, EBI4 oil burner transformer, EBI4 gas burner transformer, EBI4M oil burner transformer, EBI4M Gas burner transformer, EBI41P Gas burner transformer, EBI4M, EBI41P, EBI4CM, EBI4C1P, EBI4HPM, EBI4HP1P, EBI4LP, EBI4LPM and EBI4LP1P available in India.

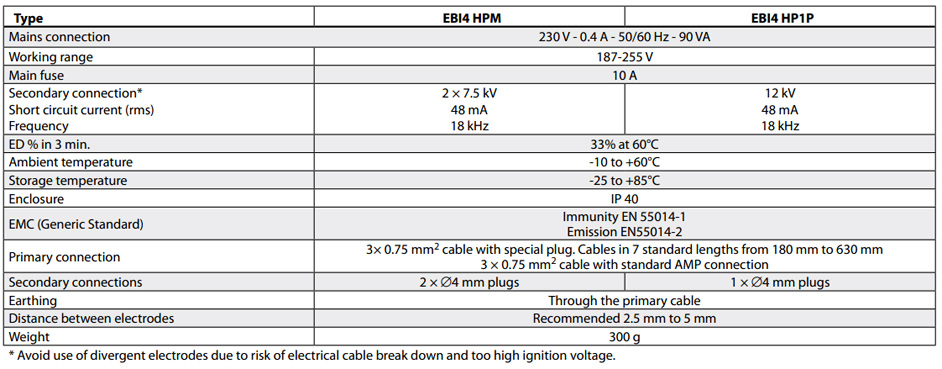

Danfoss Transformer EBI4HPM and EBI4HP1P Technical Data



www.suntecoilpumps.com | +91 9820524582 | +91 9820344636  | +91 9323220221 | +91 9322310718  |  Yash Hitech Systems



Transformer collection | Danfoss Transformer collection : DANFOSS ignition unit for oil & gas burners/boilers:
Danfoss 1 pole primarily for gas burners, Danfoss 2 pole standard for oil burners , Danfoss 2 pole with earth connected centre for oil burners, Two pole transformers. Single pole transformers. Two pole and Single pole transformers with 100 percent ED. 4 wire transformers for simultaneous ignition and flame monitoring. Transformers with 110 Volts, primary supply. High temperature silicone ignition cables up to 180 deg. C in 7 mm and 5 mm diameters. Danfoss transformer tool kit.

Transformer EB14 DANFOSS, Danfoss ebi transformer 240v 052f4031, DANFOSS EBI TRANSFORMER LEAD, Danfoss Ebi4 ignition Transformer, Transformer Conversion Kit 2 Pole DANFOSS, Danfoss EBI Transformer D01-052F4030, Danfoss plug and lead for EBI.
