All Danfoss EBI Accessories In India

EBI Service Kit for easy replacement of a conventional ignition transformer to an electronic ignition.
4x fixing screws
2 spark plug wire with 4 mm plug length 500 mm
2 x 4 mm dia plug electrodes
2 x 6.35 mm electrode connector
4 screws, adhesive pad and instructions



All type of Danfoss EBI Transformer are available in Mumbai, India (On Demand)








Danfoss EBI4 C Transformer Series:



Type of EBI4 C Transformers

Transformer EBI4 CM
Transformer EBI4 C1P





The EBI4 C unit series is specially designed for applications where constant ignition is required. EBI4 CM is a 2-pole version with secondary mid-point grounded. EBI4 C1P is a 1-pole version for ignition between 1 electrode and frame.



EBI4C Transformer Applications and Features :

1- or 2-pole ignition
Low power consumption due to high efficiency (new technology)
Complies with the RoHs and WEEE directives
EMC according to EN 55014-1 and EN EN 55014-2
Earth connectionthrough the primary cable
Same dimensions and flexible mounting as the well-known EBI series

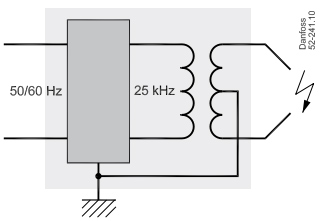

Transformer EBI4 CM

Oil/gas burners requiring constant ignition
2-pole ignition
Secondary mid-point connected to earth/frame
100% ED at 35C/70% ED at 60C
Top or front connection for secondary cables
230 V

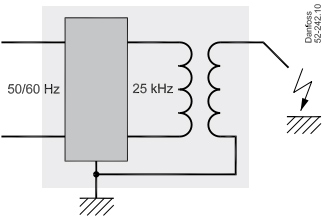

Transformer EBI4 C1P

Gas burners a.o. application requiring constant ignition
1-pole ignition between 1 electrode and frame
100% ED at 35C/70% ED at 60C
Top or front connection for secondary cables
230 V


Danfoss EBI transformer : EBI4CM oil burner transformer, EBI4CM Gas burner transformer, EBI4C1P gas burner transformer, EBI4 oil burner transformer, EBI4 gas burner transformer, EBI4M oil burner transformer, EBI4M Gas burner transformer, EBI41P Gas burner transformer, EBI4M, EBI41P, EBI4CM, EBI4C1P, EBI4HPM, EBI4HP1P, EBI4LP, EBI4LPM and EBI4LP1P available in India.

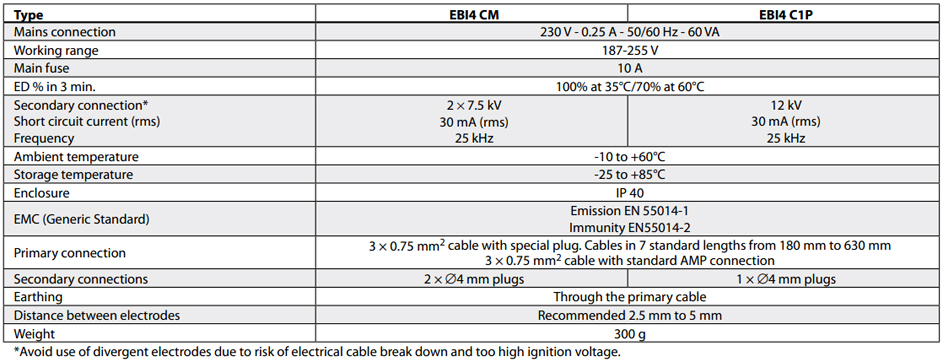

Danfoss Transformer EBI4 CM and EBI4 C1P Technical Data





www.suntecoilpumps.com | +91 9820524582 | +91 9820344636  | +91 9323220221 | +91 9322310718  |  Yash Hitech Systems



Transformer collection | Danfoss Transformer collection : DANFOSS ignition unit for oil & gas burners/boilers:
Danfoss 1 pole primarily for gas burners, Danfoss 2 pole standard for oil burners , Danfoss 2 pole with earth connected centre for oil burners, Two pole transformers. Single pole transformers. Two pole and Single pole transformers with 100 percent ED. 4 wire transformers for simultaneous ignition and flame monitoring. Transformers with 110 Volts, primary supply. High temperature silicone ignition cables up to 180 deg. C in 7 mm and 5 mm diameters. Danfoss transformer tool kit.

Transformer EB14 DANFOSS, Danfoss ebi transformer 240v 052f4031, DANFOSS EBI TRANSFORMER LEAD, Danfoss Ebi4 ignition Transformer, Transformer Conversion Kit 2 Pole DANFOSS, Danfoss EBI Transformer D01-052F4030, Danfoss plug and lead for EBI.
